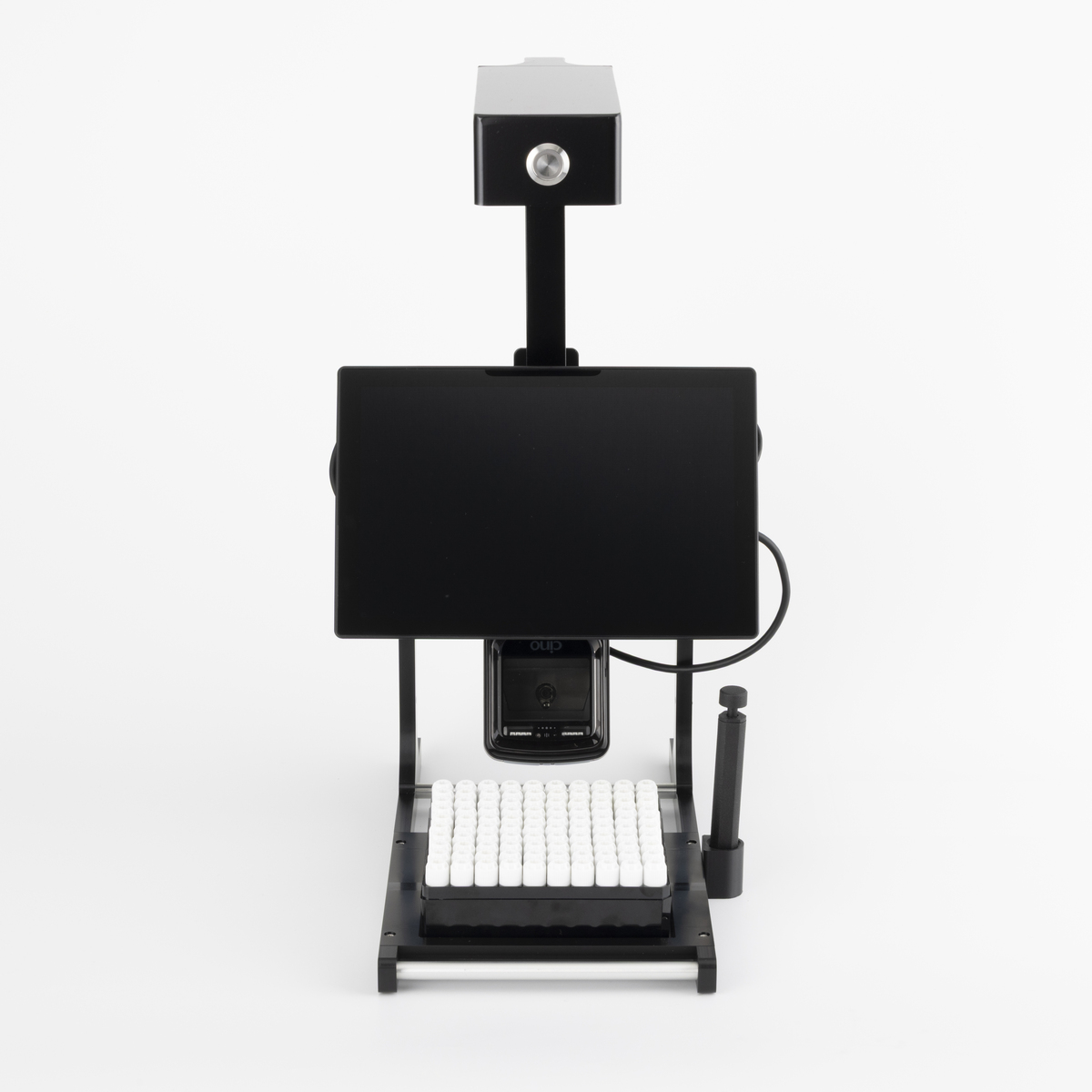

Description

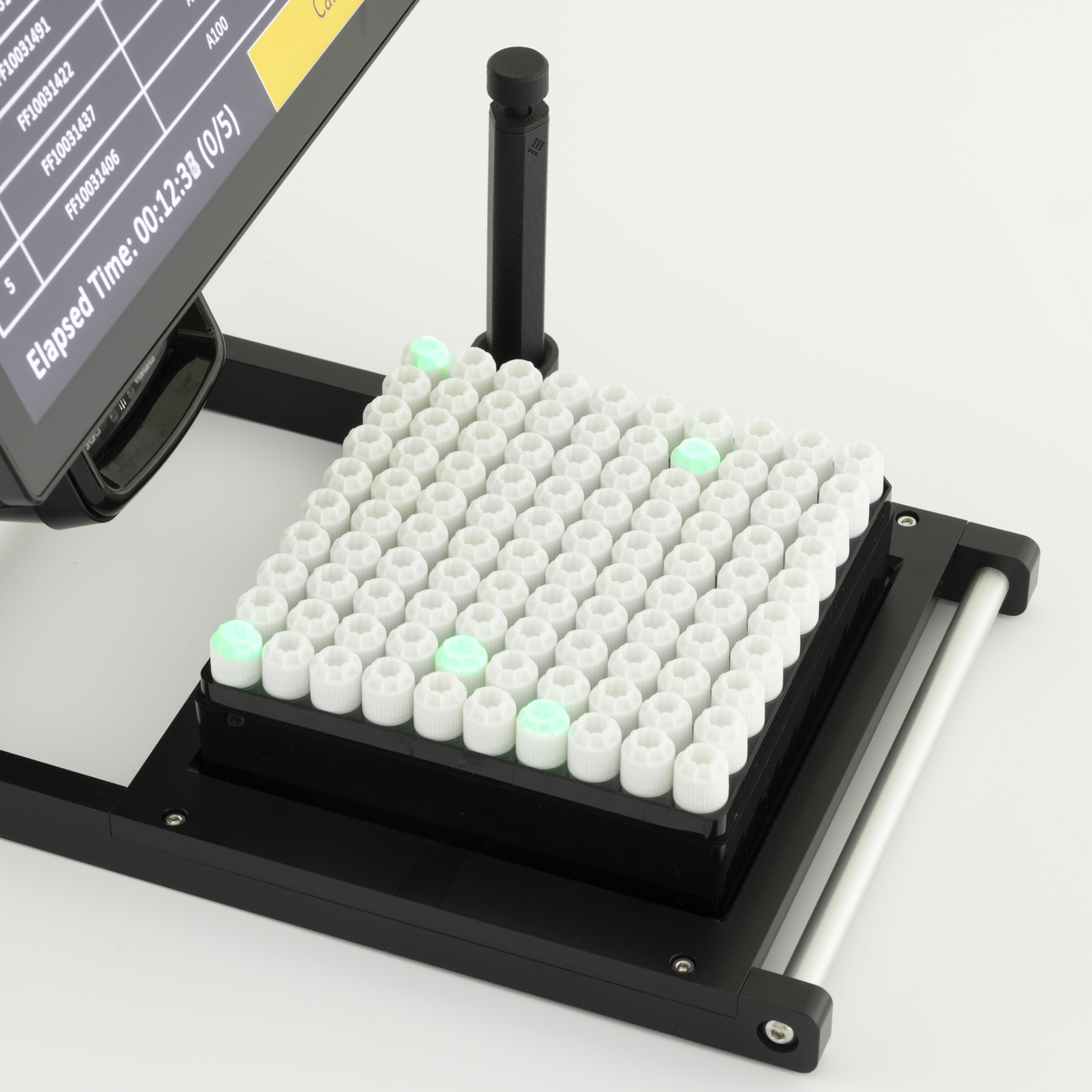

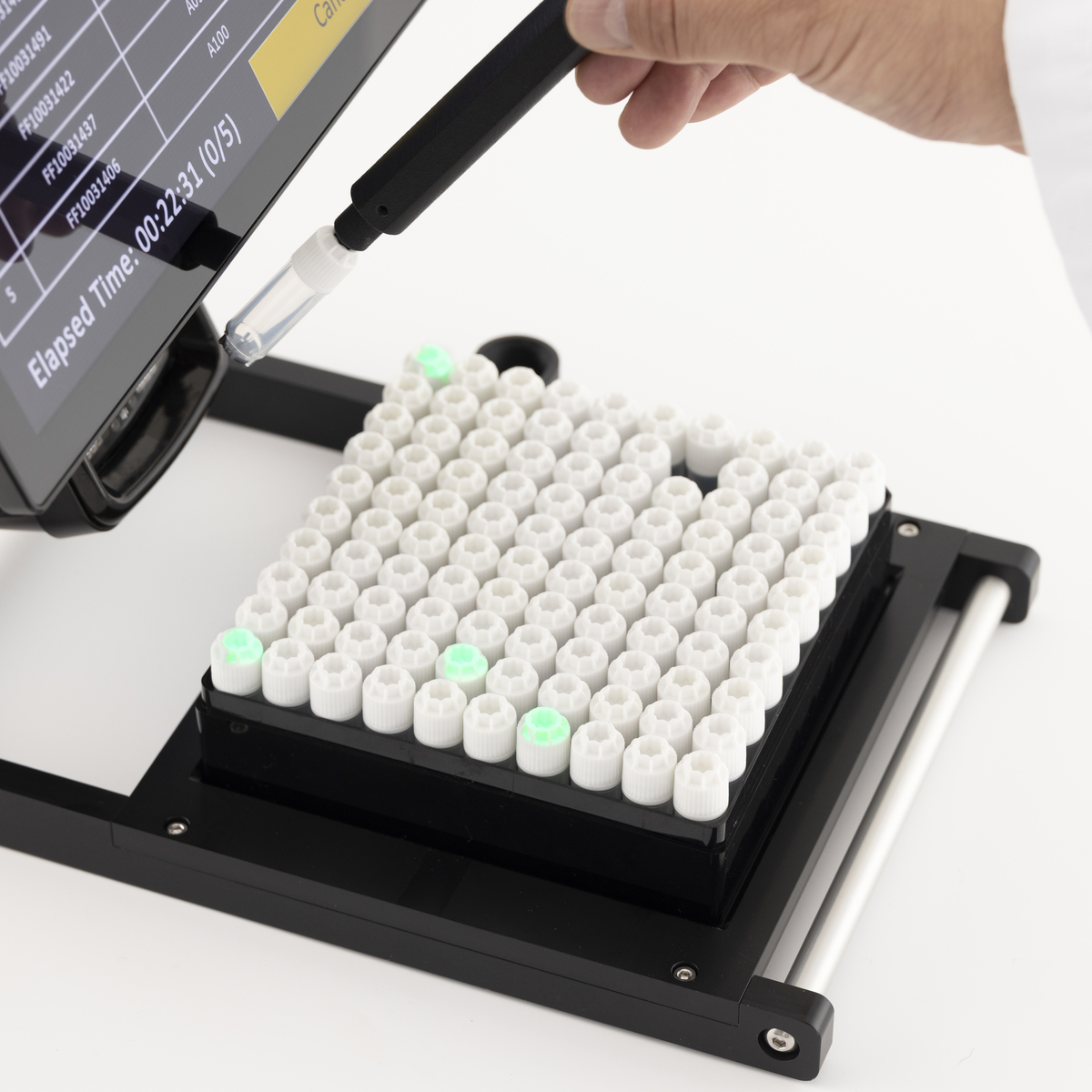

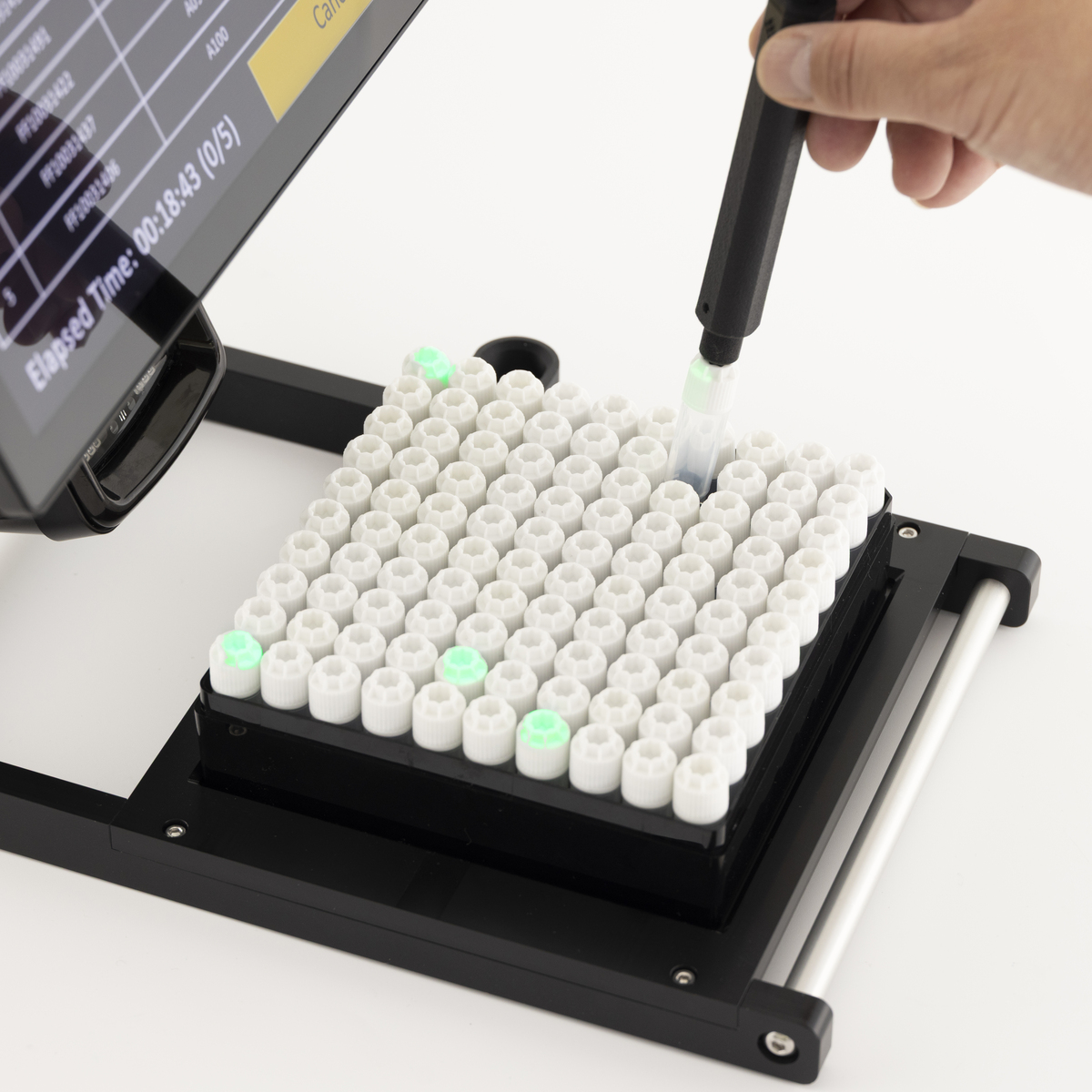

- A focus-free MEMS projector is used to illuminate the desired sample position with light and navigate the processing.
- Not only freeze boxes (135 x 135 mm) but also SBS standard size tube racks can be used.

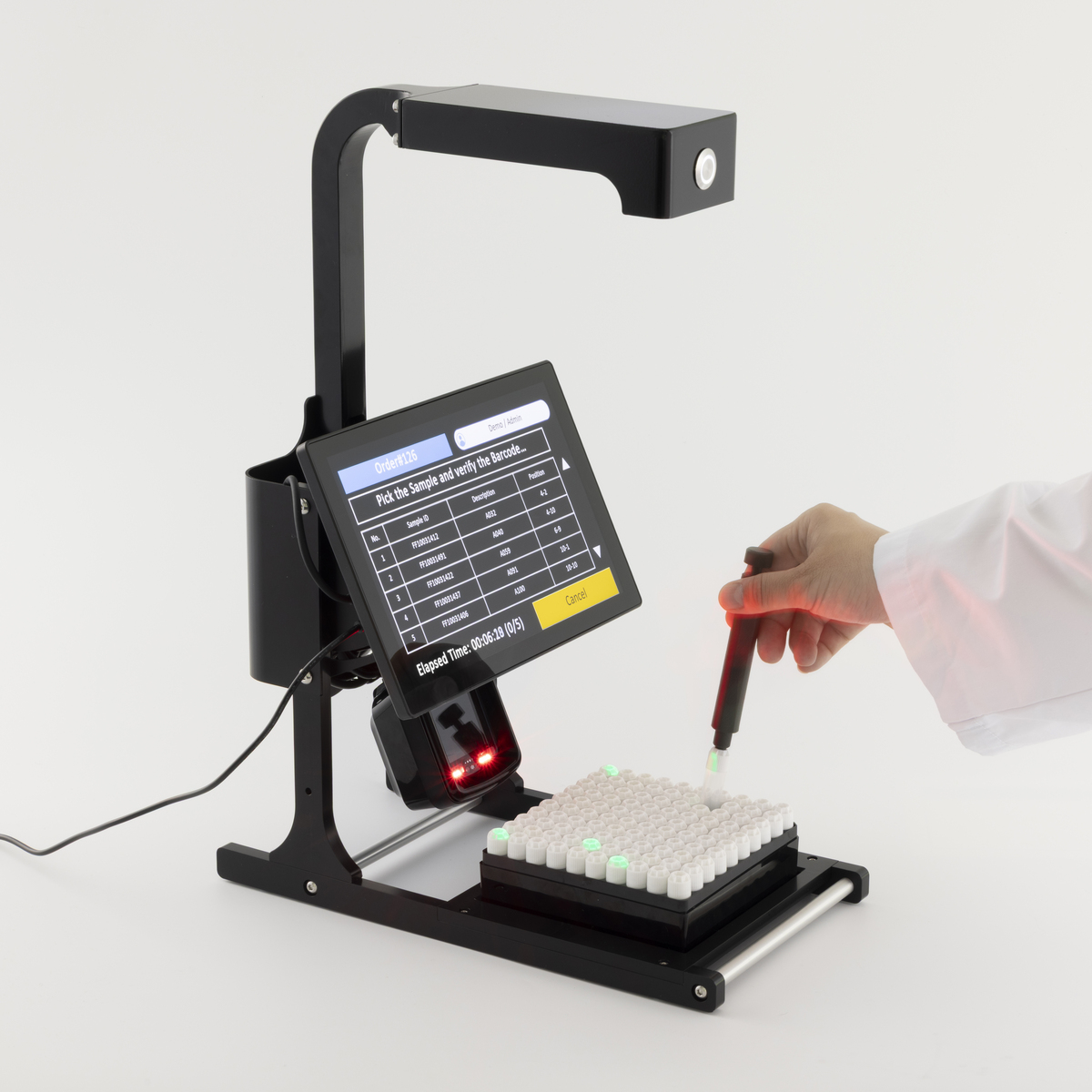

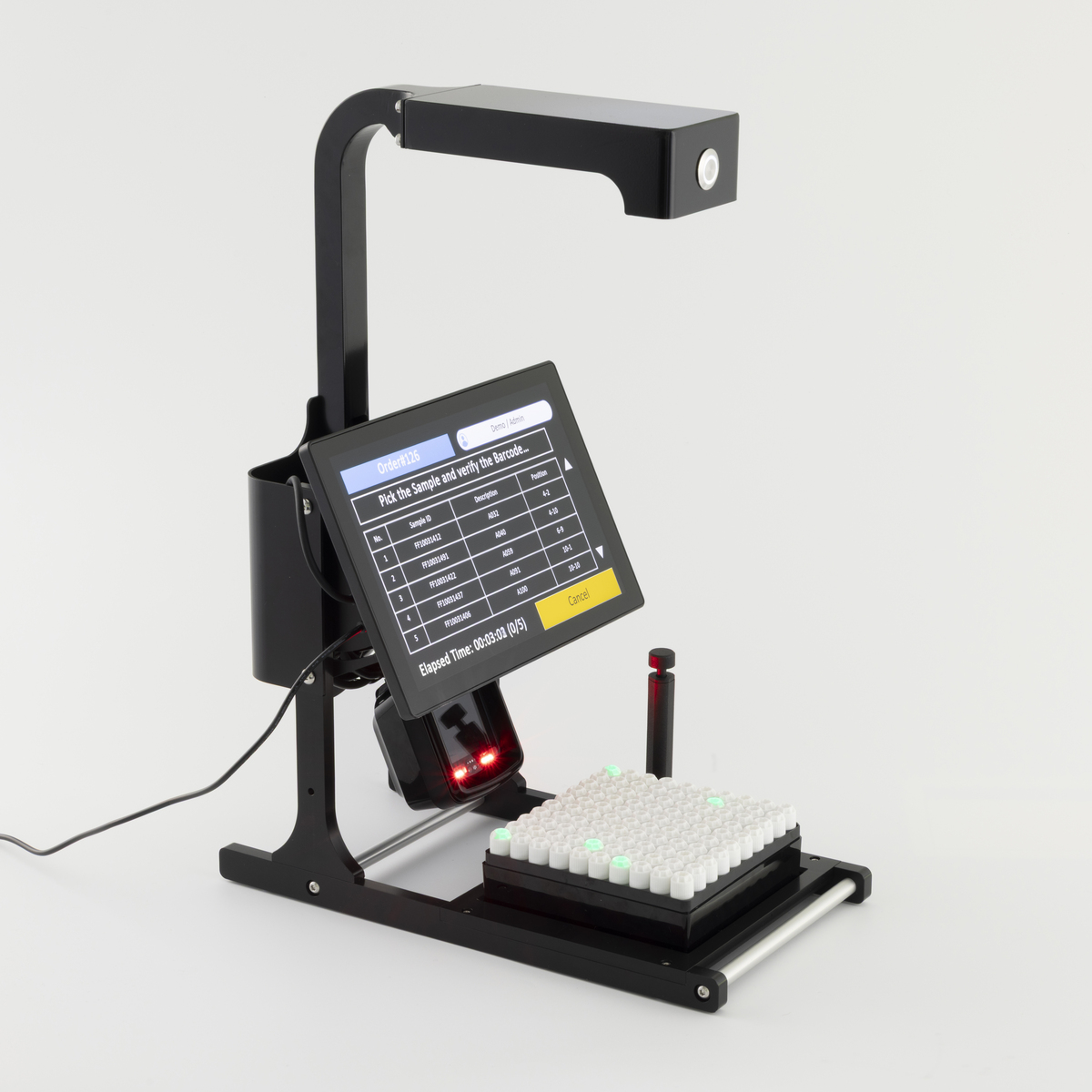

- To check sample IDs, you can select a 1D/2D barcode reader or an RFID reader (UHF range).

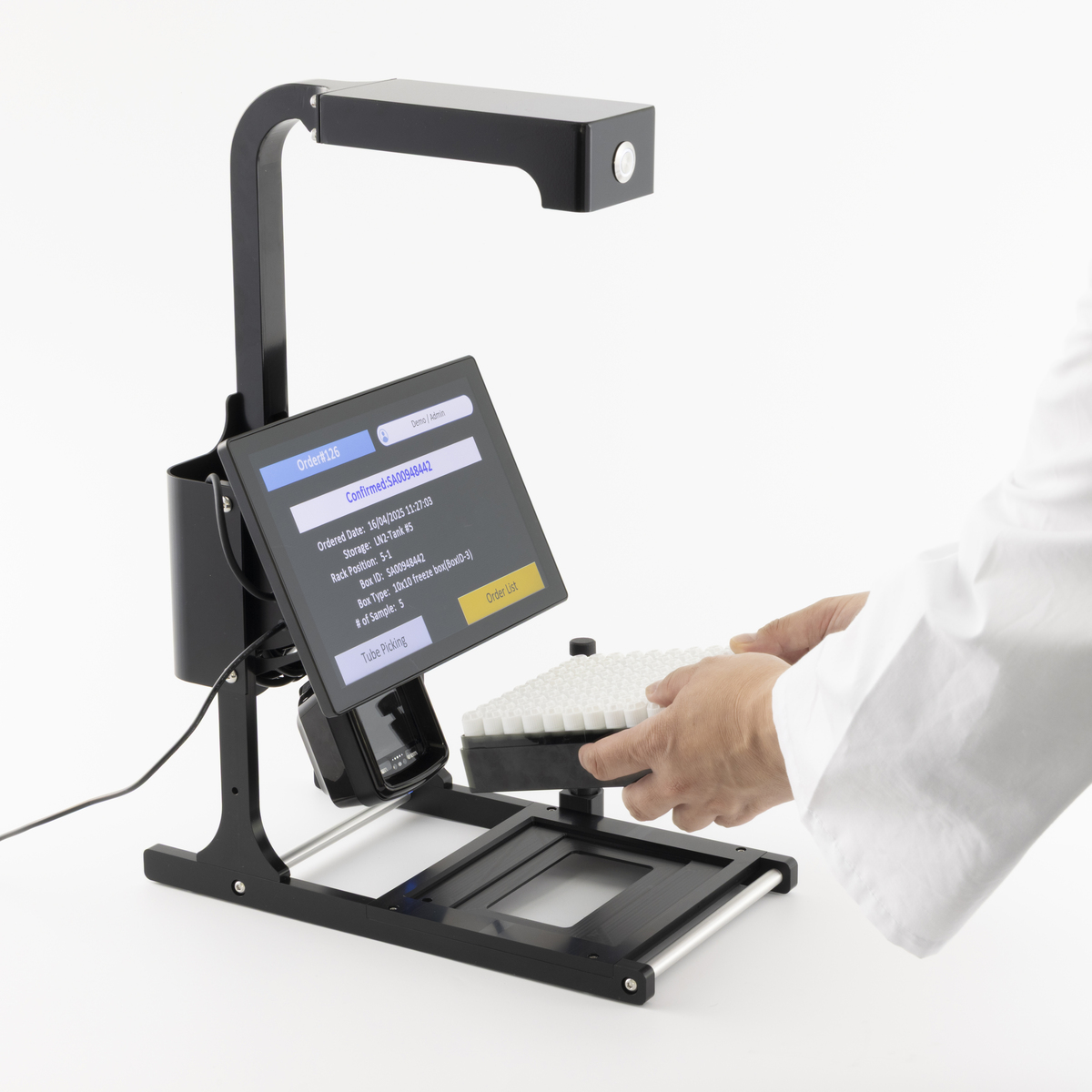

- Based on the picking list from the sample management system or LIMS, the box ID and target sample are checked using the built-in barcode/RFID reader.
- Data such as total process time and history can be synchronized with the host system based on the result file.
Specifications
| Model | AirPicker |
| Compatible containers | SBS standard rack(85.3 x 127.6 mm) Freeze box(135 x 135 mm) |
| Projector | Focus free RGB laser |
| Resolution | 1280×720 pixel |
| Brightness | 34lm +/-10% |
| ID Verification | 1D/2D barcode / RFID (UHF range) |
| Power | AC100-240V 50/60Hz |
| Dimension | W180 x D340 x H460 mm |
| Weight | Approx. 3 kg |
